API 20E BLS-1 Stud Bolt & Hex Nut, A193 B7, A194 2H, 1-1/2 IN
Previous: ASTM A194 2H Hex Nuts, API 20E BLS-1, Carbon Steel, 1 Inch
Next: 1-5/8 Inch Stud & Nut, API 20E BLS-1, A193 B7, A194 2H, 8 UN
Key Specifications / Features
 Model No.: LPF-20251108-OF-02    Hits: 14

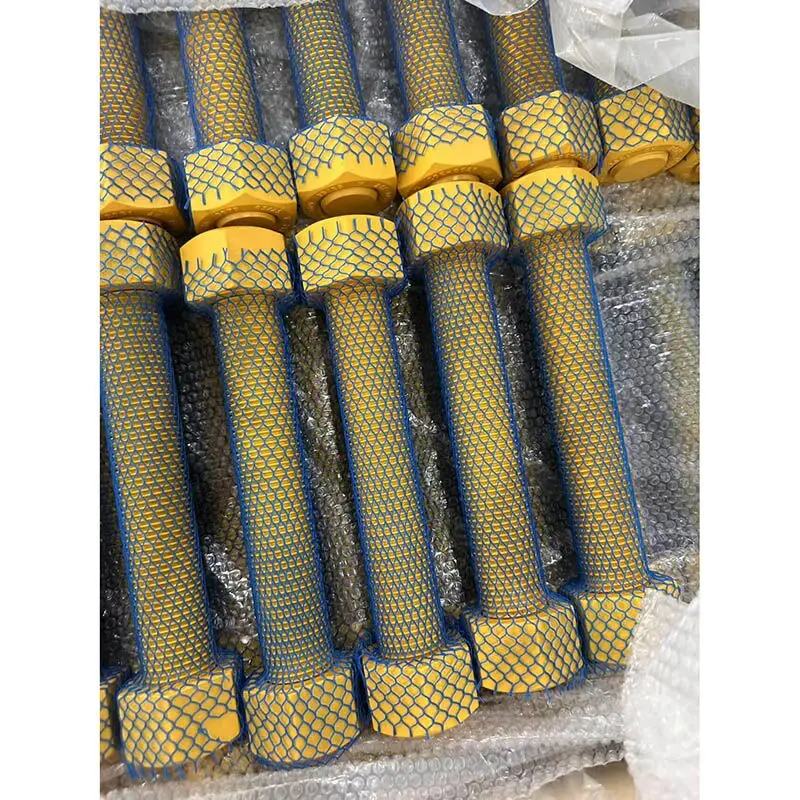

Our API 20E BLS-1 bolt and nuts factory is renowned for producing high-performance ASTM A193 B7 stud bolts and ASTM A194 2H heavy hex nuts. These bolts and nuts are designed to meet the stringent requirements of API 20E BLS-1. The 1-1/2 inch diameter stud bolts feature 8 UN threads and have a total length of 10-3/4 inches. To enhance durability and corrosion resistance, they are coated with a combination of zinc-nickel and XYLAN 1070, providing superior protection and performance.
Request a quoteShare
Tags: API 20E BLS-1 Stud Bolt,ASTM A194 Grade 2H Hex Nut,ASTM A193 Grade B7 Stud Bolt,API 20E BLS-1 Hex Nut,1-1/2 Inch Stud Bolt.

Detail Information

Product Name: Full Thread Stud Bolts with 2 Heavy Hex Nuts
Standard: API 20E BLS-1
Size: 1-1/2 Inch, 8 UN
Material:
Bolt: ASTM A193 Grade B7, Alloy Steel
Nut: ASTM A194 Grade 2H, Carbon Steel
Length: 10-3/4 Inch
Surface Treatment:
First Layer: Zinc-Nickel Base (ASTM B841/F1941) (Dry Film Thickness: 10-18 µm)
Second Layer: Yellow XYLAN 1070 (Dry Film Thickness: 15–25 µm)



Post URL: https://www.landeepipefitting.com/api-20e-bls-1-stud-bolt-hex-nut-a193-b7-a194-2h-1-1-2-in.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
