ASME B16.20 SW Gasket, SS 316L, 6 IN, CL600, Graphite Filled
Previous: Phenolic Isolation Gasket Kit, ASME B16.5, 3 IN, DN80, CL300
Key Specifications / Features
 Model No.: LPF-20260430-PG-02    Hits: 0

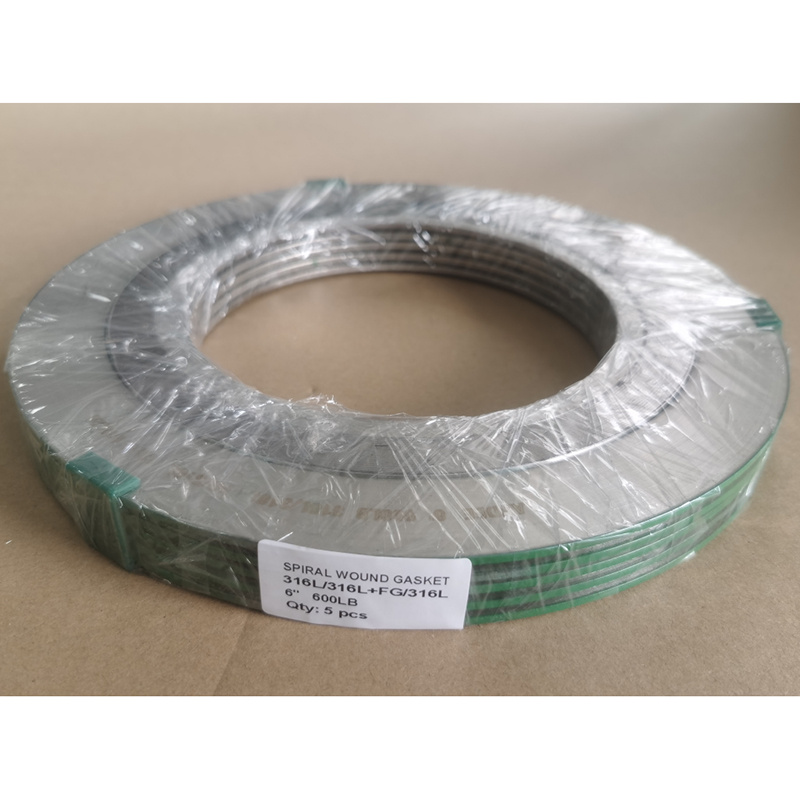

ASME B16.20 spiral wound gaskets are semi-metallic seals designed for high-pressure, high-temperature flanged joints. This 6-inch (DN150) gasket features a stainless steel 316L winding strip with graphite filler, reinforced by inner and outer guide rings. Rated for Class 600 LB service, it combines metal resilience with graphite conformability to seal against steam, hydrocarbons, and corrosive media in refineries, power plants, and chemical processing facilities.
Request a quoteShare
Tags: Spiral Wound Gasket,SS 316L Gasket,6 Inch Gasket,ASME B16.20 Gasket,Class 600 LB Gasket.

Detail Information

Product Name: ASME B16.20 SW Gasket
Type: Spiral Wound Gasket
Design Standard: ASME B16.20
Size: 6 Inch, DN150
Pressure Rating: Class 600 LB, PN100
Materials:
Winding Strip/Hoop: Stainless Steel SS 316L
Inner Ring: SS 316L
Outer Ring: SS 316L
Filler: Graphite



Post URL: https://www.landeepipefitting.com/asme-b16-20-sw-gasket-ss-316l-6-in-cl600-graphite-filled.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
