Forged Hexagonal Threaded Plug, 3/4 Inch, 3000 LB, NPT
Previous: ASME B18.31.1M Threaded Stud Bolt, ASTM A453 660 CL.B, M42
Key Specifications / Features
 Model No.: LPF-20260921-HP-01    Hits: 1

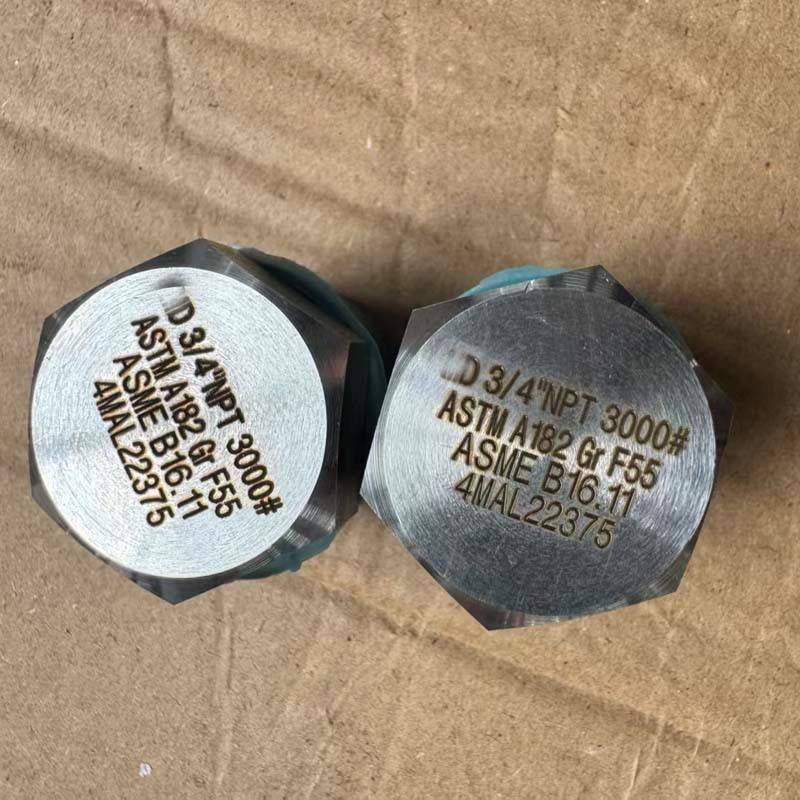

Forged hexagonal threaded plug made of ASTM A182 Grade F55 super duplex stainless steel, a robust high-pressure forged pipe fitting rated 3000 LB, also marked as 3000#. It features a nominal size of 3/4 inch, DN20, with NPT taper-thread ends, fabricated strictly following ASME B16.11 manufacturing code, heat identification number 4MAL22375. This heavy-duty hex plug offers superior resistance to pitting and crevice corrosion, ideal for sealing pipe ends in oil, gas, and chemical high-pressure pipeline systems with dependable threaded sealing performance.
Request a quote
Tags: ASME B16.11 Hex Plug,DN20 Plug,ASTM A182 F55 Plug,Super Duplex Stainless Steel Plug,NPT Plug,3/4 Inch Plug.

Detail Information

Forged Hexagonal Threaded Plug | Super Duplex Stainless Steel

Product Identity: High-pressure forged hex plug, classified as a forged pipe fitting
Material Spec: ASTM A182 Grade F55 Super Duplex Stainless Steel
Pressure Rating: 3000 LB (3000#)
Nominal Size: 3/4 inch, DN20
End Type: NPT Taper Thread
Manufacturing Code: ASME B16.11
Heat Identification Number: 4MAL22375

This heavy-duty forged hexagonal plug is built to ASME B16.11 for high-pressure piping applications. Crafted from ASTM A182 Gr F55 super duplex stainless steel, the component features an external NPT tapered thread for secure sealing. The hexagonal outer profile delivers reliable torque transfer during assembly and removal. Suited for harsh, corrosive working environments, it serves to seal and cap pipe terminations in process, oil and gas, and chemical fluid pipelines.



Post URL: https://www.landeepipefitting.com/forged-hexagonal-threaded-plug-3-4-inch-3000-lb-npt.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
