ISO 2531 Level Invert Tee, Ductile Iron, DN1000*DN200, PN16

Name: ISO 2531 Level Invert Tee, Ductile Iron, DN1000*DN200, PN16
SKU: lpf-20250621-pt-01
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Previous: 10000 PSI Reducing Tee, API 6A, A105, 4 * 2 Inch, Butt Weld
Next: ASME B16.9 Y Type Tee, A403 WP316L, 4 IN, SCH 40S, Butt Weld

Key Specifications / Features

Model No.: LPF-20250621-PT-01 Hits: 18

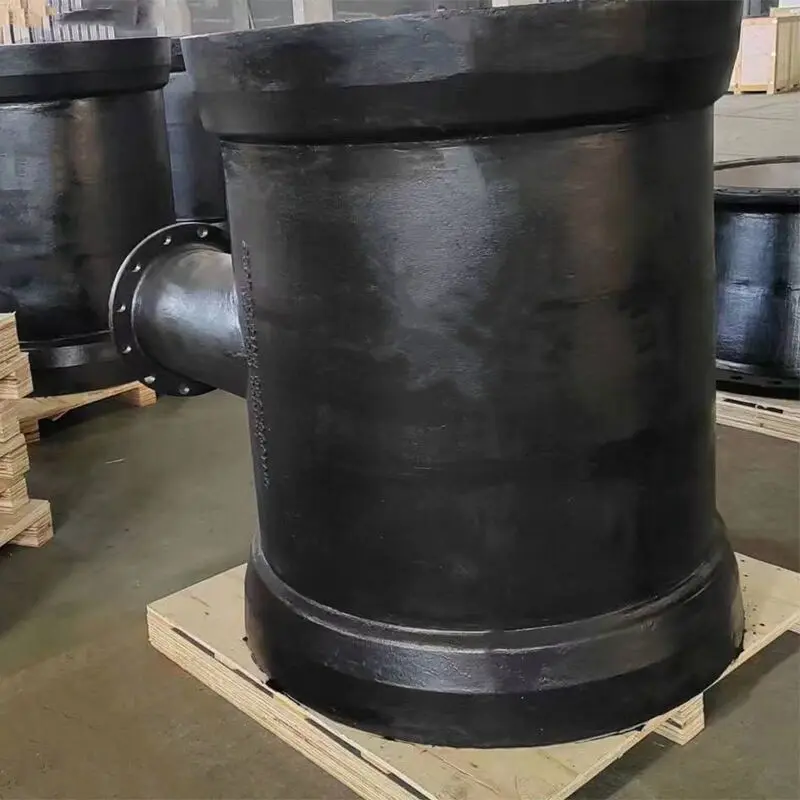

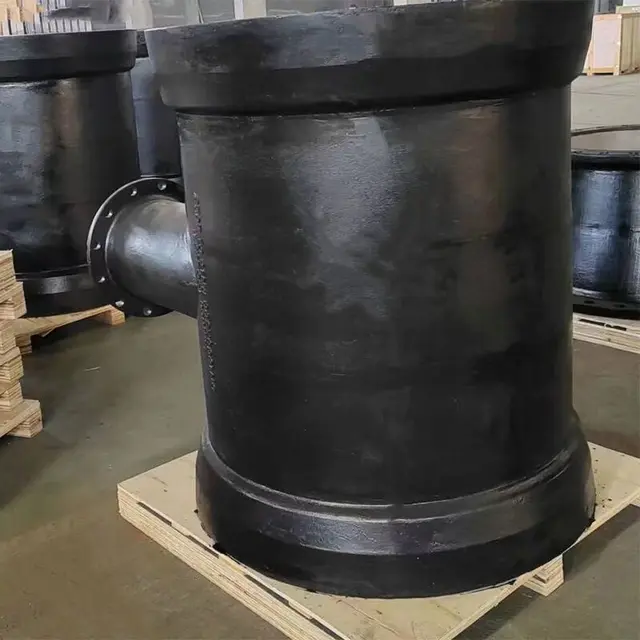

We offer a high-quality ISO 2531 Level Invert Tee, featuring ductile iron construction with a double socket design. The product has a main diameter of DN1000 and a branch diameter of DN200, equivalent to 40 * 8 inches. It is rated at PN16 pressure class and includes a flanged branch for secure connections. The invert tee is internally and externally coated to enhance durability and corrosion resistance, making it ideal for demanding industrial applications.

Request a quote Share

Tags: Level Invert Tee,Double Socket Pipe Tee,Ductile Iron Pipe Tee,ISO 2531 Pipe Tee,PN16 Pipe Tee.

Detail Information

Product Name: ISO 2531 Level Invert Tee, Double Socket
Standard: ISO 2531
Material: Ductile Iron (SG Iron)
Dimensions: DN1000 * DN200, 40 * 8 Inch
Pressure Rating: PN16, Class 150 LB
Connection Ends: Double Socket Level Invert Tees with Flanged Branch
Coating:
External: Zinc-rich coating (200 g/m²) + Bitumen layer (80 µm)
Internal: Cement-sand lining (7 mm)

Post URL: https://www.landeepipefitting.com/iso-2531-level-invert-tee-ductile-iron-dn1000-dn200-pn16.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
