Merchant Full/Half Couplings, ASTM A865, Threaded, SCH STD

Name: Merchant Full/Half Couplings, ASTM A865, Threaded, SCH STD
SKU: lpf-20241026-pcp-02
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Previous: Universal Pipe Couplings, 2-24 Inch, 150 LB, DI, Steel, PVC
Next: ASTM A182 F304L Full Coupling, 1/2 Inch, 3000 LB, NPT Ends

Key Specifications / Features

Model No.: LPF-20241026-PCP-02 Hits: 52

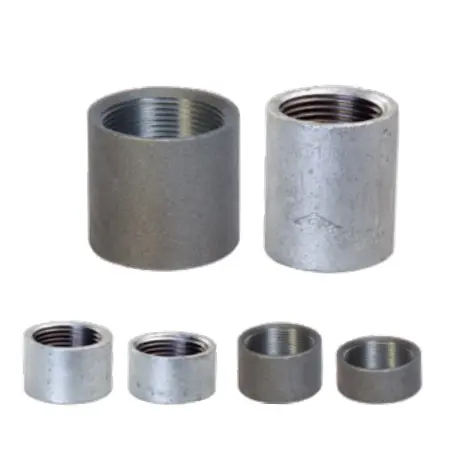

The Merchant Steel Couplings, produced in our plant, are available in both full and half styles, designed to meet American Standard specifications. Constructed from high-quality materials, they conform to ASTM A865 for material and dimensions, featuring ASME B1.20.1 threads for secure connections, Offered in standard schedule dimensions.

Request a quote

Tags: ASTM A865 Pipe Coupling,Merchant Coupling,Steel Pipe Coupling,Half Pipe Coupling,Full Pipe Coupling.

Detail Information

Product Name: ASTM A865 Steel Merchant Coupling with American Standard
Type: Full or Half Couplings
Material: ASTM A865
Dimensions: ASTM A865
Threads: ASME B1.20.1
Schedule: Standard

ASTM A865 Steel Merchant Coupling Design Drawing

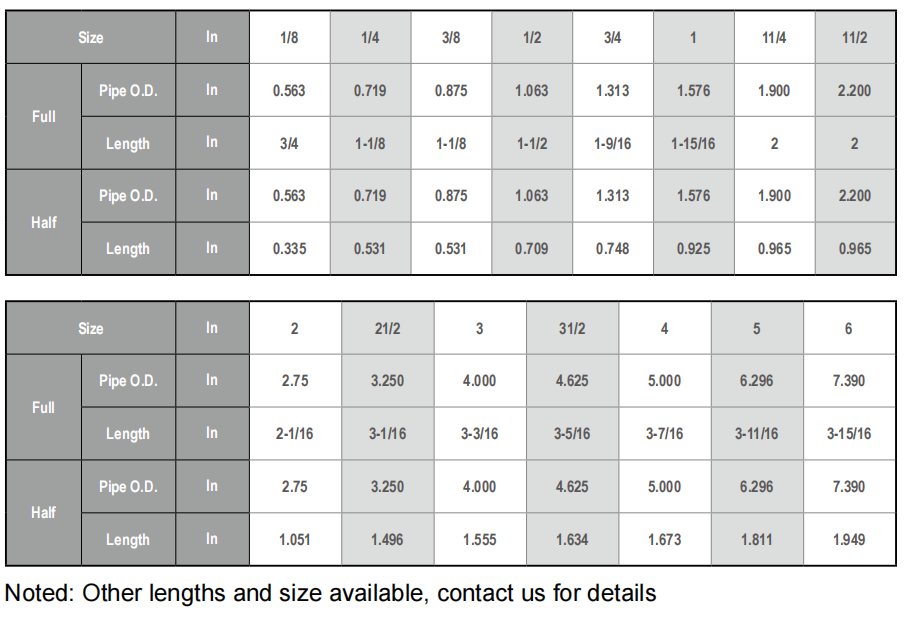

ASTM A865 Steel Merchant Coupling Dimensions

Post URL: https://www.landeepipefitting.com/merchant-full-half-couplings-astm-a865-threaded-sch-std.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
