Non-Metallic Gasket, ASME B16.21, Expanded PTFE, 8 IN, CL150
Previous: ASME B16.21 Gasket, Non-Asbestos Fiber, 3/4 Inch, CL150 LB
Key Specifications / Features
 Model No.: LPF-20250516-PG-03    Hits: 0

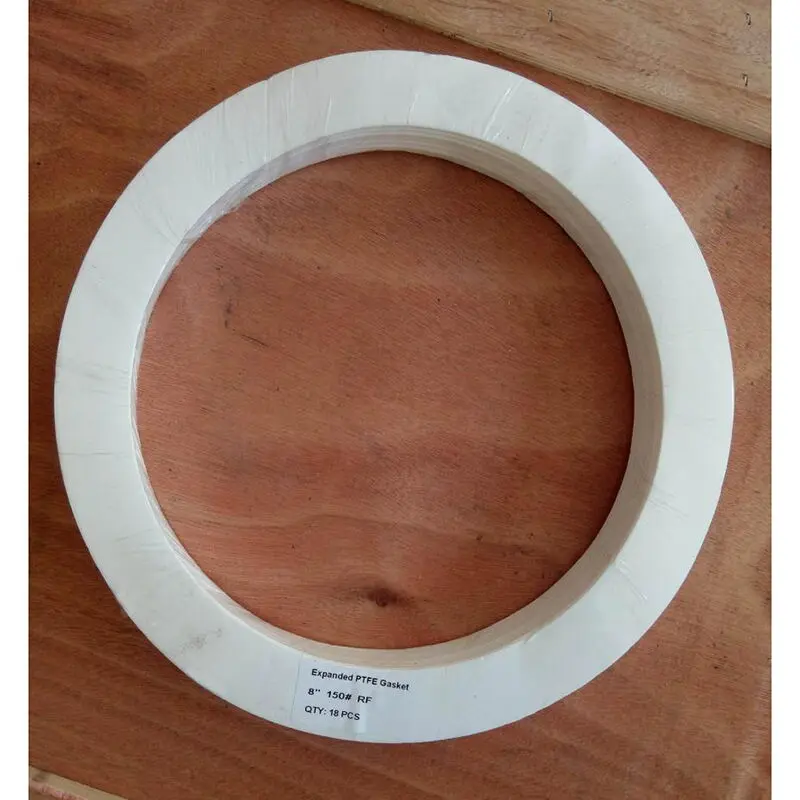

This China Non-Metallic Gasket Factory produces high-quality gaskets in compliance with ASME B16.21 standards. The gaskets are made from expanded PTFE (Polytetrafluoroethylene), a material known for its excellent chemical resistance and thermal stability. Each gasket is 8 inches in size (DN200), rated for a pressure class of 150 LB (PN20), and has a thickness of 4.5 mm. These gaskets are specifically designed for use with raised face flanges, ensuring a reliable and durable seal in various industrial applications.

Request a quoteShare
Tags: Expanded PTFE Gasket,ASME B16.21 Gasket,Non-Metallic Gasket,8 Inch Gasket,Class 150 LB Gasket.

Detail Information

Product Name: Non-Metallic Gasket, Expanded PTFE
Standard: ASME B16.21
Material: Expanded PTFE
Size: 8 Inch, DN200
Pressure: Class 150 LB, PN20
Thickness: 4.5 mm
Flange Type: Raised Face



Post URL: https://www.landeepipefitting.com/non-metallic-gasket-asme-b16-21-expanded-ptfe-8-in-cl150.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
