SS 304 Spiral Wound Gaskets, EN 1514-2, DN400, PN100, 16 IN
Previous: Flange Insulation Gasket Kits, Type F, Phenolic, 4 IN, CL150
Next: EPDM Rubber Flat Gasket, EN 1514-1, DN80, PN10, THK 2 mm, RF
Key Specifications / Features
 Model No.: LPF-20250908-PG-02    Hits: 29

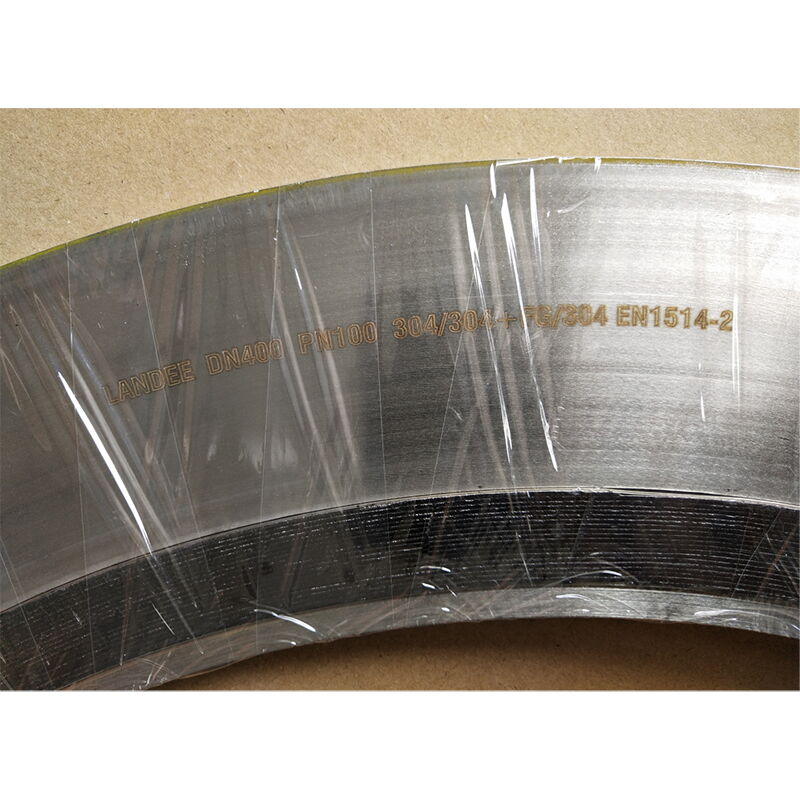

The SS 304 Spiral Wound Gaskets Supplier offers gaskets that adhere to EN 1514-2 standards. These gaskets feature stainless steel SS 304 inner and outer rings, combined with a flexible graphite filler for enhanced sealing performance. Available in DN400 size, PN100 pressure rating, and 16 inches in diameter, they provide robust sealing solutions for high-pressure applications, ensuring reliability and durability in industrial piping systems.
Request a quoteShare
Tags: SS 304 Gasket,EN 1514-2 Gasket,DN400 Gasket,Spiral Wound Gasket,PN100 Gasket.

Detail Information

Product Name: SS 304 Spiral Wound Gaskets
Design Standard: EN 1514-2
Size: DN400, 16 Inches
Pressure: PN100, Class 600 LB
Materials:
Inner Ring: Stainless Steel SS 304
Outer Ring: SS 304
Filler: SS 304+FG



Post URL: https://www.landeepipefitting.com/ss-304-spiral-wound-gaskets-en-1514-2-dn400-pn100-16-in.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
