Super-alloy Inconel 625 Sylph-on Bellows Joint

Sylph-on Bellows Joint

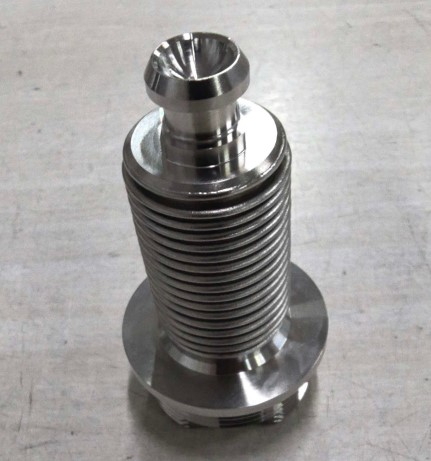

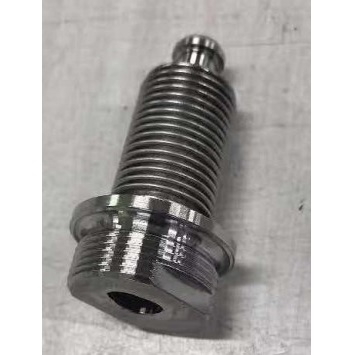

Engineered, custom-built Sylph-on bellows joint built for critical valve sealing duties. The bellows core is constructed from Inconel 625 superalloy, paired with ANSI-compliant 316 stainless steel flanges and 316 stainless steel valve stem shanks. This metal bellows unit is fabricated with high-fidelity laser welding and precision CNC machining, delivering robust performance under elevated-temperature and heavily corrosive service environments. Drawing-led OEM and ODM custom development is offered to match unique project requirements.

1. Product Name: Sylph-on Bellows Joint / Bellows Seal Assembly for Valves
2. Bellows Material: Inconel 625 (UNS N06625) high-performance superalloy
3. Flange: ANSI-compliant SS 316 stainless steel
4. Shank / Stem: SS 316 stainless steel valve stem component
5. Manufacturing Process: Precision laser welding combined with tight-tolerance CNC machining
6. Feature: Bubble-tight sealing, elevated-temperature endurance, robust corrosion resistance, extended operational service life
7. Application: Control valves, globe valves, chemical and petrochemical process equipment
8. Customization: Bespoke dimensions, wall thickness, drawing-driven builds, and special specifications are supported
9. Inspection: Each complete assembly undergoes 100% pneumatic leak testing prior to dispatch

Deployed on control valves and globe valves within chemical facilities, petroleum processing plants, and power generation sites, well-suited for demanding service environments featuring high temperatures and aggressive corrosive media.
