Custom Sanitary Clamps, A182 F304/316/304L/316L, 1/2–10 Inch
Previous: Stainless Steel Sanitary Pipe Fittings, SS 304/316L, 1/2–8 IN
Next: Sanitary Pipe Unions, Stainless Steel, 3A, ISO, 1/2–10 Inch
Key Specifications / Features
 Model No.: LPF-20260112-OF-02    Hits: 3

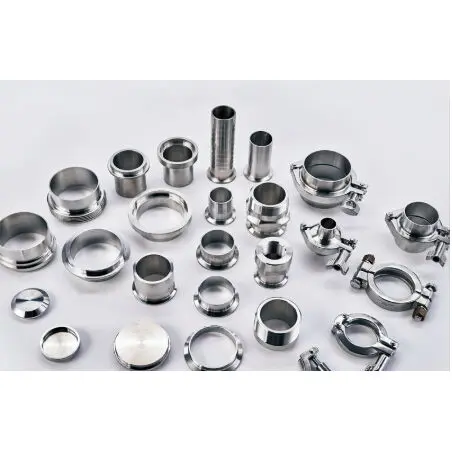

The Custom Sanitary Clamps Manufacturer specializes in producing high-quality stainless steel clamps, ferrules, and adapters designed for sanitary applications. These products adhere to stringent industry standards such as ASME BPE, DIN, SMS, 3A, IDF, and ISO, ensuring reliability and compatibility. Made from durable materials including ASTM A182 F304/304L/316/316L, they offer corrosion resistance and strength. Available in sizes ranging from 1/2 to 10 inches.
Request a quoteShare
Tags: Sanitary Clamp,ASTM A182 F304 Clamp,ASTM A182 F304L Clamp,ASTM A182 F316 Clamp,ASTM A182 F316L Clamp.

Detail Information

Product Name: Sanitary Clamps, Stainless Steel
Types: Clamp, Ferrule, Adapter
Sizes: 1/2–10 Inch, DN15–DN250
Outside Diameter: 17.2–273 mm
Standards: ASME BPE, DIN, SMS, 3A, RJT, IDF, ISO
Material (Medium Contact Parts): ASTM A182 F304 / F304L / F316 / F316L
Seal Materials: EPDM, Silicone, NBR
Working Temperature: -10°C to 150°C (EPDM), -20°C to 120°C (Silicone)
Surface Finish: Inner <0.8 µm, Outer <1.6 µm
Applications: Milk, Juice, Beer, Beverage, Pharmacy, etc

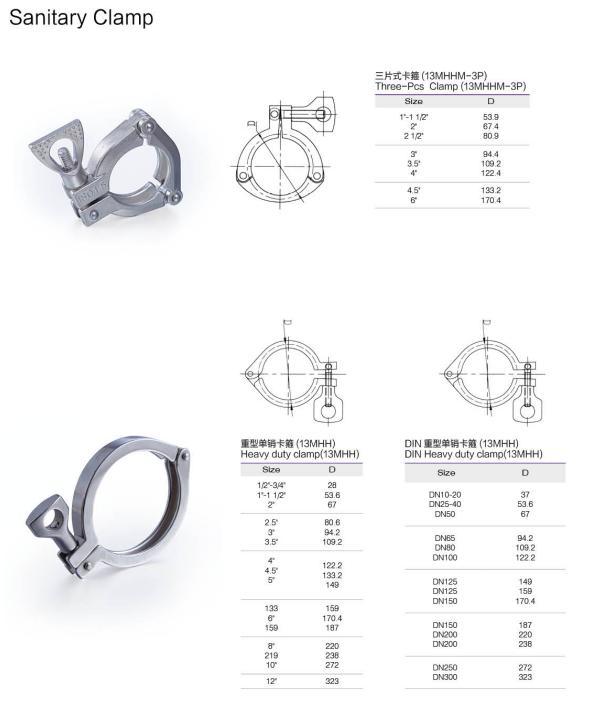

Sanitary Clamp Dimensions



Post URL: https://www.landeepipefitting.com/custom-sanitary-clamps-a182-f304-316-304l-316l-1-2-10-inch.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
