Sanitary Pipe Unions, Stainless Steel, 3A, ISO, 1/2–10 Inch
Previous: Custom Sanitary Clamps, A182 F304/316/304L/316L, 1/2–10 Inch
Next: Stainless Steel Pipe Holder, SS 304/304L/316/316L, 1/2–12 IN
Key Specifications / Features
 Model No.: LPF-20260112-OF-03    Hits: 0
The China Sanitary Pipe Unions Plant offers a range of high-quality stainless steel unions designed for sanitary applications. These unions comply with international standards such as DIN, 3A, and ISO. Made from durable materials like ASTM A182 F304/304L/316/316L, they provide excellent corrosion resistance and strength. Available with EPDM, silicone, and NBR seals, these unions ensure a tight and secure connection. Their sizes range from 1/2 to 10 inches, with outer diameters from 17.2 to 273 mm.
Request a quoteShare
Tags: Sanitary Pipe Union,Stainless Steel Pipe Union,ASTM A182 F304 Pipe Union,ASTM A182 F316 Pipe Union,ASTM A182 F304L Pipe Union,ASTM A182 F316L Pipe Union.

Detail Information

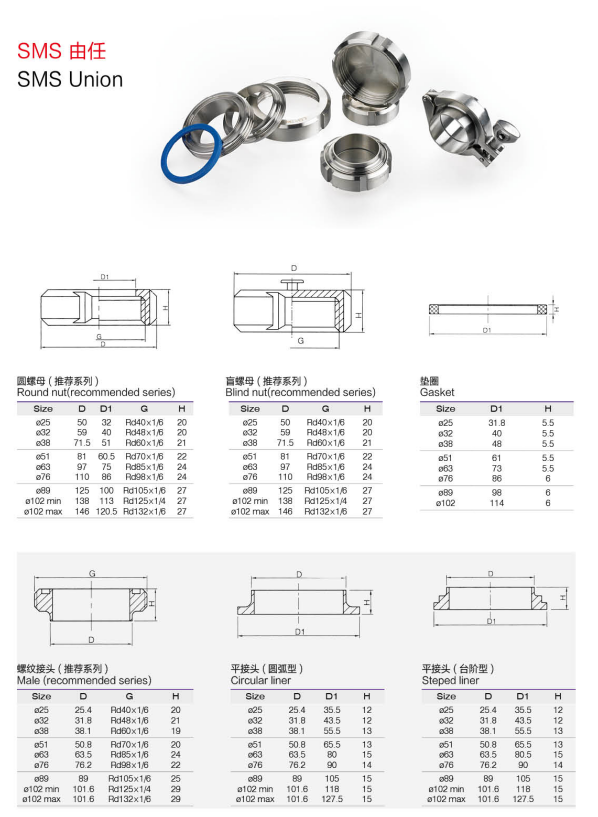

Product Name: Sanitary Pipe Unions, Stainless Steel

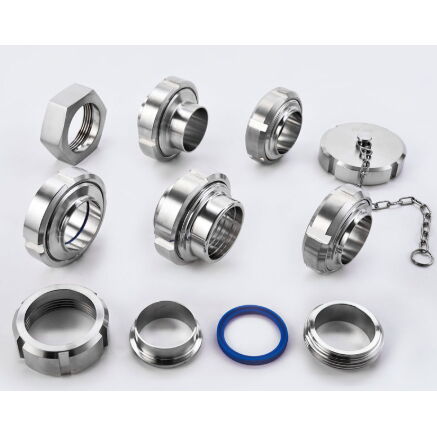

Types: Nut, Male, Liner, Expanding Male, Blind Nut
Sizes: 1/2–10 Inch, DN15–DN250
Outside Diameter: 17.2–273 mm
Standards: DIN, SMS, 3A, RJT, IDF, ISO
Body Material: ASTM A182 F304 / F304L / F316 / F316L
Seal Materials: EPDM, Silicone, NBR
Working Temperature: -10°C to 150°C (EPDM), -20°C to 120°C (Silicone)
Surface Finish: Inner <0.8 µm, Outer <1.6 µm
Applications: Milk, Juice, Beer, Beverage, Pharmacy, etc

Sanitary Pipe Unions, Stainless Steel
