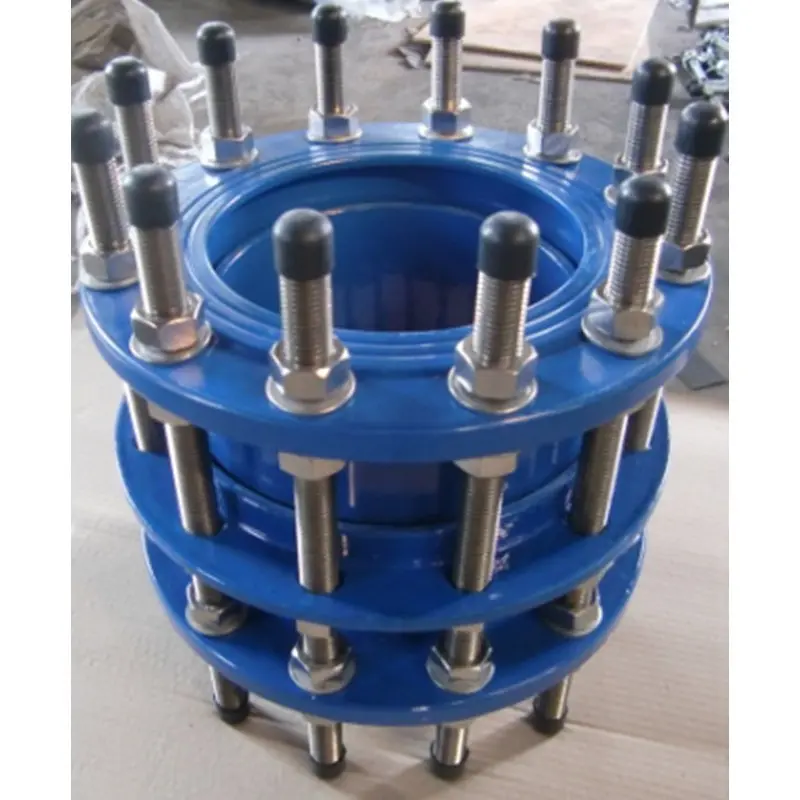

EN 545 Dismantling Joint, Ductile Iron, ISO 2531, PN10-PN64

Name: EN 545 Dismantling Joint, Ductile Iron, ISO 2531, PN10-PN64
SKU: LPF-231204-PJ-01
Availability: InStock
Rating: 5 (1 reviews)

Previous: 6 Inch Expansion Joint, EPDM Rubber, Class 150 LB, RF
Next: EPDM Seal Dismantling Joint, SS 304L, SS 316L, 1/2-24 Inch

Key Specifications / Features

Model No.: LPF-231204-PJ-01 Hits: 3

Discover our Ductile Iron Dismantling Joint Factory, compliant with ISO 2531, EN 545, ASTM standards, and available in PN10-PN64 ratings. Crafted from ductile iron with FBE coating or epoxy painting, secured by carbon steel bolts and nuts, our joints offer a durable solution for diverse applications. Trust in our commitment to quality and industry standards.

Request a quote Share

Tags: Ductile Iron Dismantling Joint,EN 545 Dismantling Joint,PN64 Dismantling Joint,ISO 2531 Dismantling Joint,Class 400 LB Dismantling Joint.

Detail Information

Name: EN 545 Dismantling Joint, Ductile Iron, ISO 2531, PN10-PN64
Standard: ISO 2531, EN 545, ASTM
Pressure: PN10, PN16, PN25, PN40, PN64
Body material: Ductile iron with FBE (fusion bonded epoxy) coating or Epoxy painting;
Gaskets are NBR or EPDM;
Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS 304/SS 316
Package: Wooden cases and protection layer.

Application: Dismantling joint is suitable for all flanged piping materials above ground or in chamber.

It enables easy installation and dismantling of isolating valves, non return valves, flow metering equipment, pumps, etc. It compensates for axial displacement of the pipe during installation.

Post URL: https://www.landeepipefitting.com/en-545-dismantling-joint-ductile-iron-iso-2531-pn10-pn64.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
