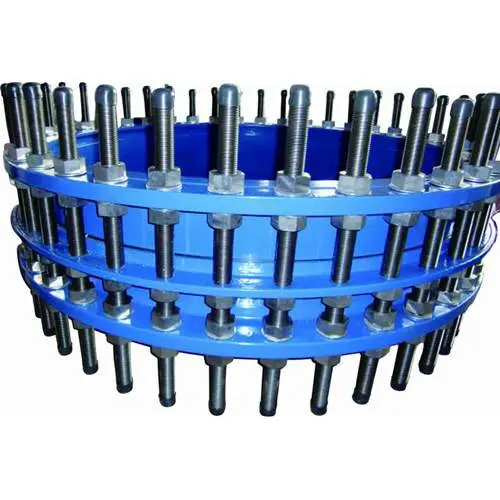

Epoxy Dismantling Joint, DI, 80 Inch
Previous: Bellow Expansion Joint, ANSI B16.5, 600 PSIG
Next: Flange Adaptor, Ductile Iron, PN16, DN700
Key Specifications / Features
 Model No.: LPF 14 PJ 09    Hits: 514
China Dismantling Joint: Dismantling Joints, Ductile Iron, Epoxy Coating or Bitumen Painting, DN50-DN2000 (2-80 Inch) Sizes, PN10, PN16 and PN25.
Request a quote
Tags: PN25 Dismantling Joint,PN16 Dismantling Joint,PN10 Dismantling Joint,80 Inch Dismantling Joint,2 Inch Dismantling Joint,DN2000 Dismantling Joint,DN50 Dismantling Joint,Bitumen Painting Dismantling Joint,Epoxy Coating Dismantling Joint,Ductile Iron Dismantling Joint.

Detail Information

Materials:
Follower Gland Ring Materials: Ductile Iron GGG500-7.
Flanged Adaptor Bodies Materials: Ductile Iron GGG500-7.
F-piece Pipe Materials: Ductile Iron GGG500-7.
Bolts, Nuts and Washers Materials: Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating, or Stainless Steel upon customers' requests.
Tie Rods: Carbon Steel Grade 4.8 with Zinc Coating, Epoxy Coating or Dacromet Coating; Or Stainless Steel upon customers request.
Gaskets Materials:
   For Water or Gas: NBR Grade A.
   For Drinking Water: EPDM Rubber to BS2494:1990 Type W.
   For Drinking Water and Sewage: SBR Grade F.
Dismantling Joints Sizes: DN50-DN2000 (2-80 Inch).
Dismantling Joints Pressure Grade: PN10 / PN16 / PN25.
Dismantling Joints Body Coating: Fusion Bonded Epoxy Coating inside and outside, or Bitumen Painting.


Post URL: https://www.landeepipefitting.com/epoxy-dismantling-joint-di-80-inch.html
Landee is a professional industrial pipe fitting manufacturer and be well accepted by customers all over the world, we has been producing Pipe Fitting for a variety of applications since 1985. welcome to access our website: https://www.landeepipefitting.com.
